MHLE Type Single Girder Gantry Crane

  • MHLE Type Single Girder Gantry Crane
  • MHLE Type Single Girder Gantry Crane

MHLE Type Single Girder Gantry Crane

    Payment Type: T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging:  1.Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolley/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable fo
    Brand: Mide
    Transportation: Ocean,Land
    Place of Origin: Henan
    Certificate: ISO/CE
    HS Code: 8426193000
    Port: Qingdao,Qingdao Other Ports Are Available

Basic Info

Model No.: MHLE

Product Description

MHLE Type Single Girder Gantry Crane is one another kind of L type single girder gantry crane, while there is a little different, MHLE is with two electric hoists. This two wire rope electric hoist can be work separately to increase the working efficiency. When facing the heavy articles, the two electric hoist can be working together. This gantry crane with hoist is commonly used crane, applied in outside warehouse for loading and unloading or lifting of scrap. The control models are cabin control, pendant push buttons control or by crane wireless remote control.

This gantry crane is Mid-duty crane, the duty class is A3/A4, this gantry crane has two support legs only, it is easy to transport long materials from beam center to two sides of beam.

Single beam gantry crane with hoist

Parameter

Capacity

Ton

5~20

Span

m

12~30

Lifting height

m

6~12

Lifting speed

m/min

3~8

Travelling speed

m/min

20~30

Drive type

Motor driven for all motions

Duty Class

A3

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Control model

Pendant pushbutton control or remote control or cabin control

Gantry Crane with hoist

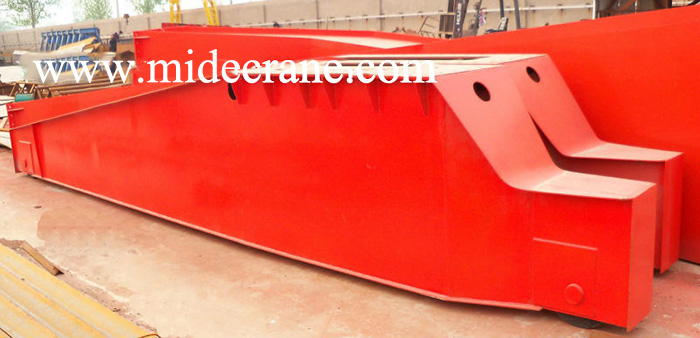

The crane beam is box frame, it is made by Q235 steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide are welding


Single beam gantry crane

The legs are box frame, it is made by Q235 steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding

single beam crane



The drive mechanism & travelling beam of gantry crane, the travelling drives from the motor/gear box are center shaft mounted for direct drive

Crane Running Wheels


The travel wheels of crane using 45# steel and finished heat treatment for long life, and the bearings are sealed for life to reduce maintenance needs.

CD1 MD1 Electric Hoist


The lifting mechanism(electric hoist) of single girder overhead crane, the gear box have hardened and ground helical gears for high efficiency, quite operation and high reliability

Crane Remote Control



The electrical control box & control handle, the electrical contractors are Siemens brand, the control handle has on/off & emergency stop buttons

Our Packing and Delivery

gantry crane delivery


1.Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

2. Main beams, end beams and trolley/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.

3. If the size are suitable for container ship, usually by container; if not, usually by bulk ship or by container after truncation

Our service

Pre-sales service:

We have R&D center to keep the accuracy for the machine. we can design by your sketch or we can give you the project design according to your need.

gantry crane delivery


After-sales service

Oversea after-sales is available; when it is required by customer, we will send technicians to your site to installation and commissioning according to your actual environment.

gantry crane after sales service
